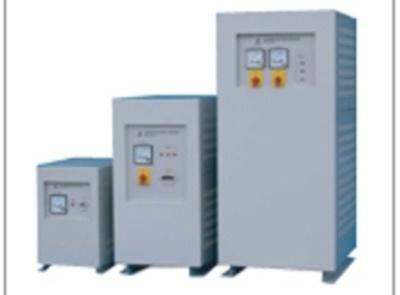

Description

Electric machine, regardless of its size, be it a small power tool or a gigantic set of manufacturing
equipment, will operate properly only on electrical
power with a voltage level that is within its allowable tolerance.

When the supply voltage fluctuates beyond a
machine’s tolerable limit, it results in over-voltage orunder-voltage stress, which can have detrimentaleffect on the machine.

Usually, over-voltage and under-voltage electrical
problems are beyond the control of any electricity
user. One of the possible means to tackle such
problems is by the use of automatic voltage stabilizer that can provide stable output voltage from fluctuating


Input
Single Phase : 240V ±10%*
Three Phase : 415V ±10%*
Frequency : 50Hz / 60Hz ±5%
Power Factor : 0.98
Output
Single Phase : 240V ±2%*
Three Phase : 415V ±2%*
Frequency : 50Hz / 60Hz ±5%
Harmonic Distortion : Nil
Efficiency : Better than 98%
Load Power Factor : 0.5 lagging / leading
* Difference range of input and output voltages is available on request.

Environmental
Operating Temperature : 0 to 45 ºC
Relative Humidity : 0 to 90% non-condensing
Audible Noise at : <35dB
1 meter

STANDARD FEATURES
• Power On Indicator
• Output Voltmeter (3KVA and above)
• Output Ammeter (10KVA and above)
• Input Breaker (90 KVA and below)
